UV LED Systems

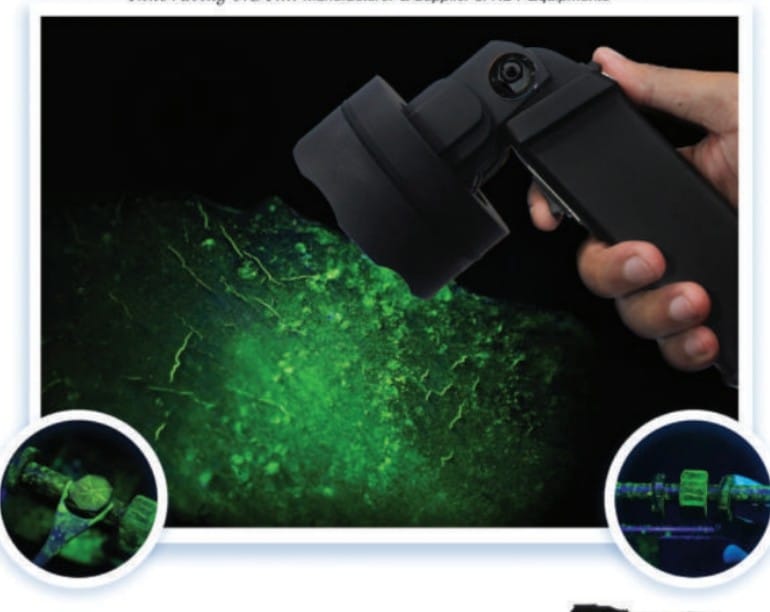

UV LED systems are advanced inspection light sources designed for high-intensity ultraviolet illumination in non-destructive testing applications. They are used primarily for fluorescent magnetic particle and penetrant inspection, delivering stable UV output with minimal white light interference for clear defect visibility.
Shield Technologies’ UV LED systems are engineered for reliability, long service life, and consistent performance in workshop and field inspection environments. The range includes portable and application-specific solutions, with detailed specifications available on individual product pages below.

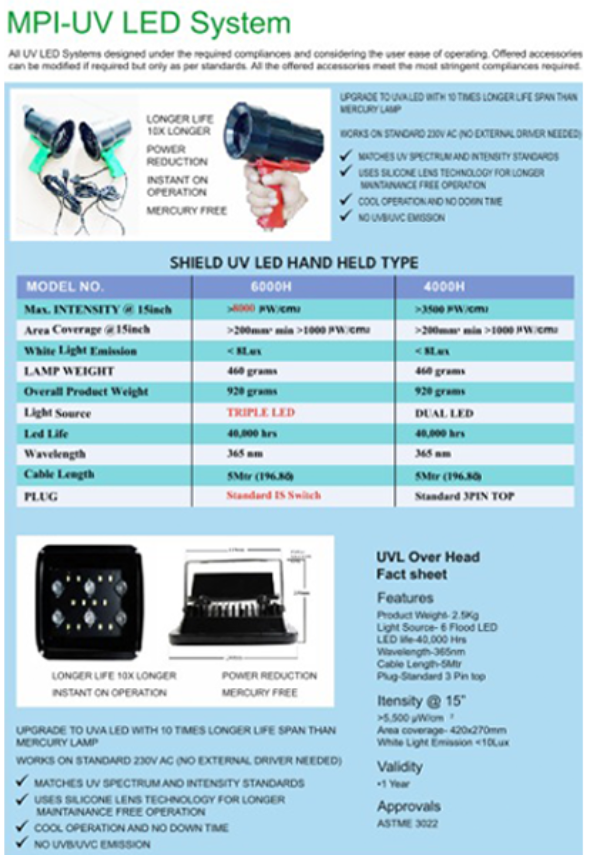

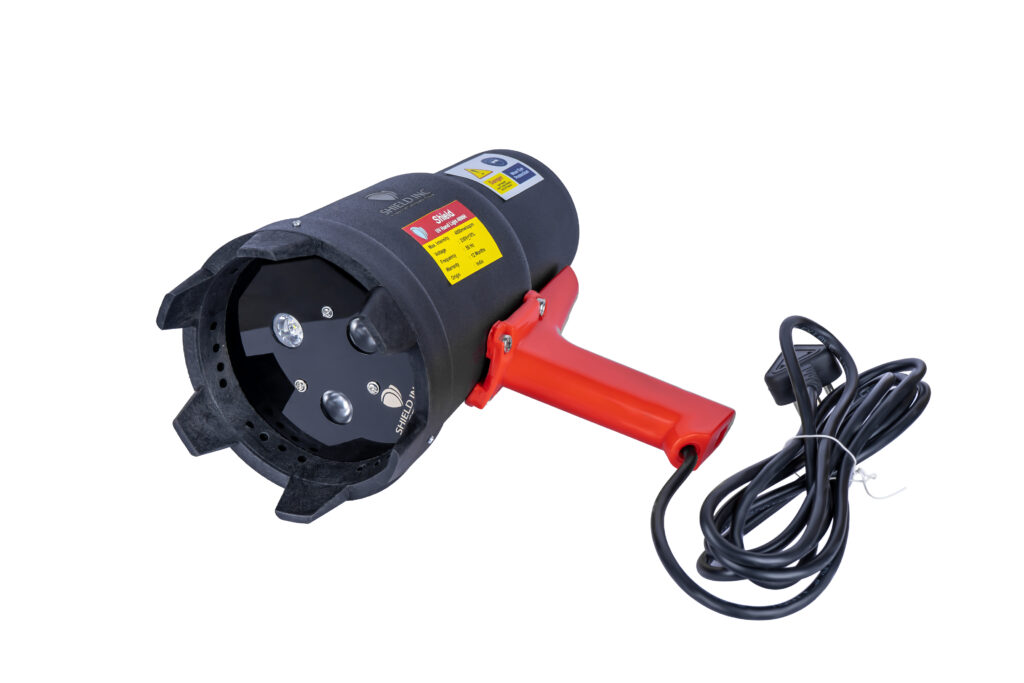

UV LED HAND 4000H
-
UV LED hand-held inspection light
-
Max intensity > 3500 µW/cm² @ 15 inch
-
Wavelength 365 nm with low white light emission
-
Dual LED light source
-
Lightweight and portable design
-
Suitable for fluorescent MPI & PT applications
UV LED HAND 6000H
-
High-intensity UV LED hand-held inspection light
-
Max intensity > 8000 µW/cm² @ 15 inch
-
Wavelength 365 nm with ultra-low white light emission
-
Triple LED light source
-
Wide inspection area coverage
-
Designed for demanding fluorescent MPI & PT inspections
